Pioneer DJ S-DJ60X

Overview

T

The S-DJ Series of active reference speakers is designed to give professional DJs and producers accurate neutral sound and excellent flexibility. Whether you are DJing, producing music or auditioning tracks, the S-DJs faithfully reproduce the original source – while a built-in linear EQ lets you fine-tune the frequencies as needed.

The S-DJ60X active reference speaker is sold as a single speaker.

Key features

• Clarity and Control
• High-Force Magnet and Bi-Amp Circuit
• Chimney Shaped Heat Sink
• Inputs and Extras

Specifications

Width

• 228 mm

Height

• 342 mm

Depth

• 295 mm

Weight

• 8.5 kg

Maximum Sound Pressure

• 113 dB


HF Level Adjust

• -2 dB/ -1 dB/ 0 dB/ +1 dB


Frequency Range

• 45 - 20000 Hz

Amplifier Output

• Class A/B Bi-amp: 125 W
• HF: 35 W (20 W)
• LF: 90 W (50 W)

Impedance

• 10 kΩ


Type

• Bi-amp, 2-way bass reflex, active monitor speakers

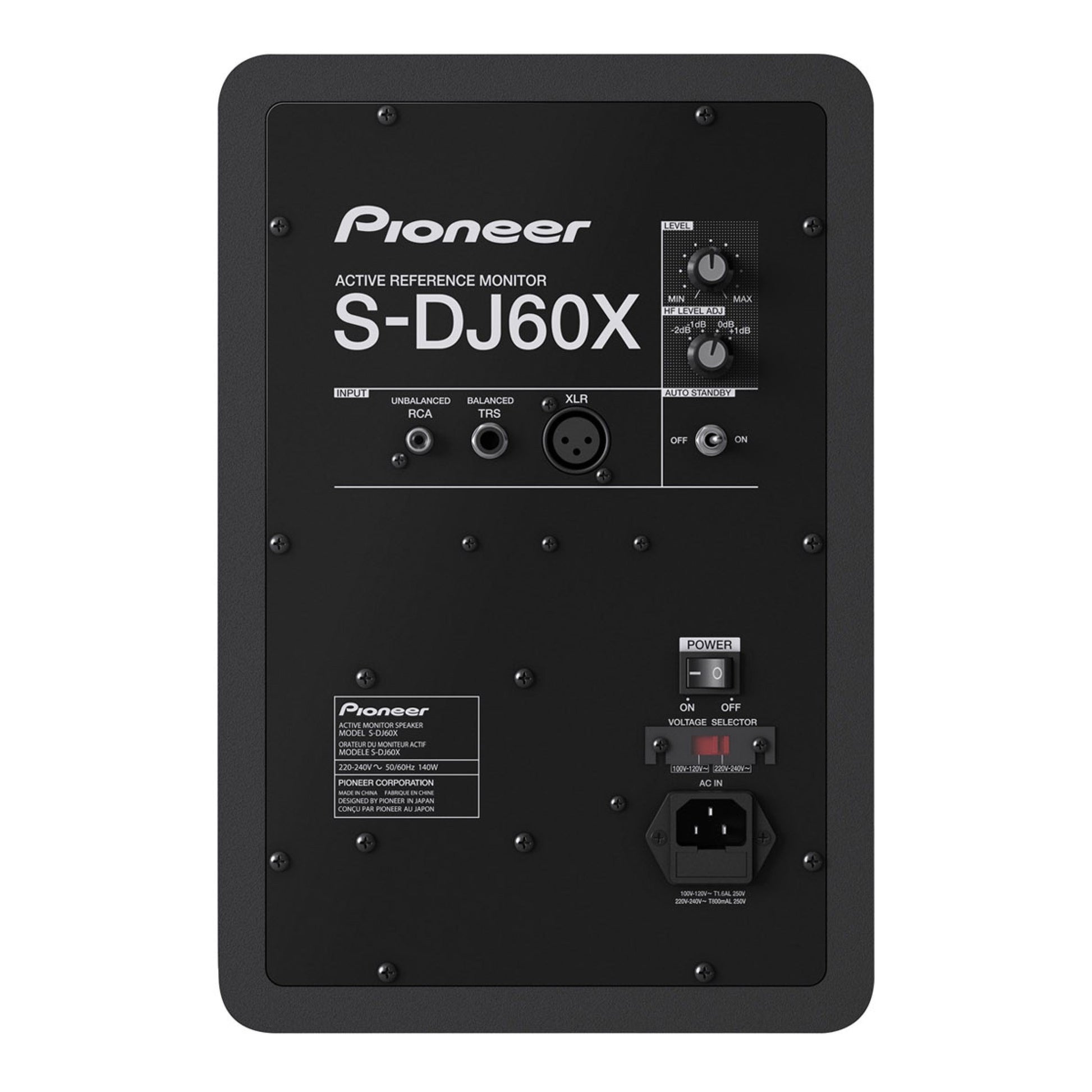

Inputs

• 1 RCA (unbalanced)
• 1 TRS (1/4 inch Jack)
• 1 XLR (balanced)
