Moog Grandmother
Moog Grandmother
Overview

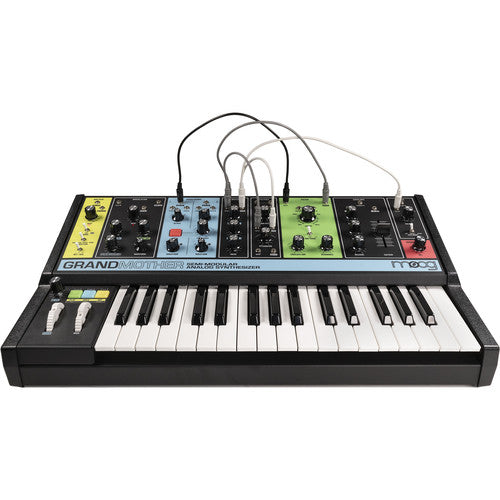

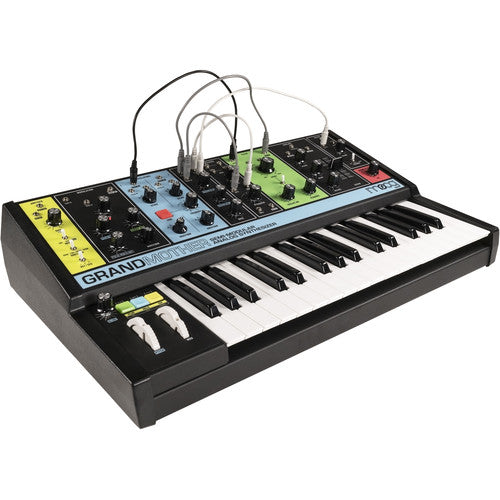

The multicolored Moog Grandmother is a semi-modular analog synthesizer with a 32-note Fatar keyboard, an integrated sequencer/arpeggiator, a spring reverb, and 41 patch points compatible with the Mother-32, DFAM, and other Eurorack modules. The semi-modular design is pre-wired internally for making sounds without patch cables and is fully controllable via MIDI.
Both oscillators offers selectable waveshapes and can be hard-synced, while the dedicated analog LFO features audio-rate capabilities. The classic 24 dB low-pass ladder filter provides a frequency range of 10 Hz to 20 kHz, while the patchable 1-pole high-pass filter offers additional harmonic shaping. Additionally, the Grandmother offers a standard ADSR envelope generator and is complemented by a built-in hardware spring reverb.
The onboard sequencer offers three memory slots and each sequence can retain up to 256 notes. Additional features include USB MIDI, MIDI in/out/thru via 5-pin DIN, a patchable bipolar attenuator, a patchable 4-way mult, and a 1/4" external input for processing guitars, drum machines and more. The Moog Grandmother ships with a power adapter, a power cord, a drawstring bag, and eight patch cables.
Key features
- 100% Analog Sound Engine
- 32-Note Fatar Keyboard with Velocity
- Two VCOs with Selectable Waveforms
- Classic Moog Ladder & High-Pass Filters
- LFO with Audio-Rate Capabilities
- 3 x Sequencer Memories, 256 Notes Each
- MIDI In, Out, Thru via DIN and USB MIDI
- 41 x Patch Points: 21 Inputs, 16 Outputs
- Hardware Spring Reverb
- Includes 8 Patch Cables
Specifications
| Keyboard | 32-Note Fatar Keyboard with Velocity |
| Polyphony | Mono |
| Multitimbral | Single |
| Synthesis Method | 100% Analog |
| Components | Two Analog Oscillators with Selectable Waveshapes and Hard Sync Classic 4-Pole Ladder Filter: 10 Hz to 20 kHz Patchable 1-Pole High-Pass Filter Envelope Generator: ADSR LFO with Audio-Rate Capabilities Patchable Bipolar Attenuator Mult: 4-jack |
| Patch Points | 41 Patch Points Inputs: 21 Output: 16 Parallel-Wired Mult: 4-Jack |
| Effects | Spring Reverb with Integrated Reverb Tank |
| Sequencer | 3 x Sequences, with Up to 256 Notes Each |
| Arpeggiator | Yes |
| Inputs | 1/4" / 6.3 mm |
| Outputs | 1/4" / 6.3 mm |
| MIDI Connectors | In: 5-pin DIN Out: 5-pin DIN Thru: 5-pin DIN USB: Type-B |
| Power | Power Adapter: 12 VAC, 2 A Voltage: 100 to 240 VAC, 50/60 Hz |
| Dimensions (HxWxD) | 5.5 x 23 x 12.3" / 14 x 58.4 x 31.1 cm |
| Weight | 16 lb / 7.3 kg |
| Package Weight | 22.4 lb |
| Box Dimensions (LxWxH) | 25.8 x 16.4 x 8.8" |
In the Box
- Moog Grandmother Semi-Modular Analog Synthesizer (Multicolored)
- 8 x Patch Cables
- Power Adapter
- IEC Power Cord
- Drawstring Bag
- Limited 1-Year Warranty
