Focusrite RedNet 5
Focusrite RedNet 5
Overview

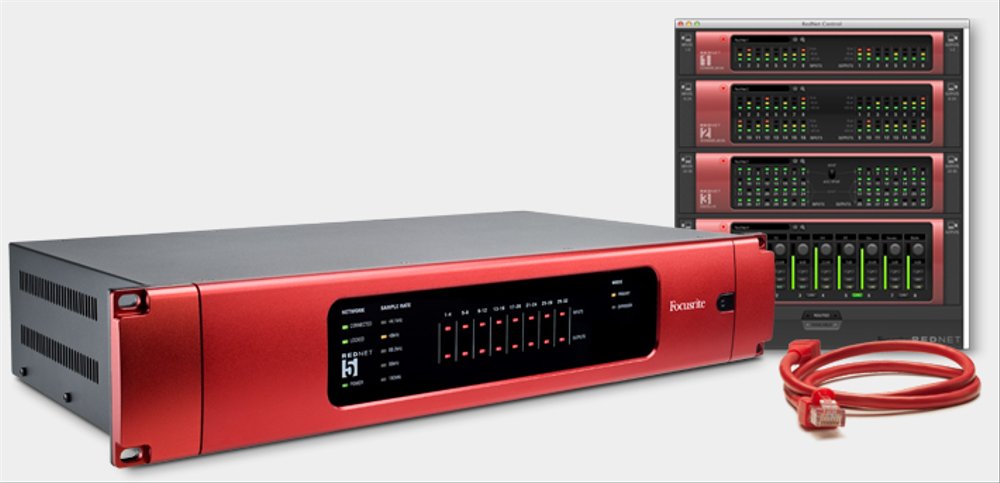

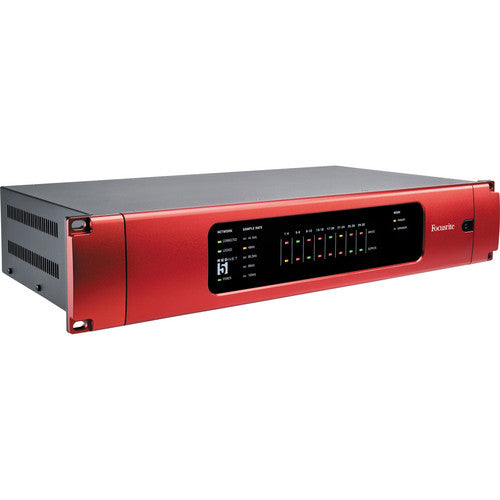

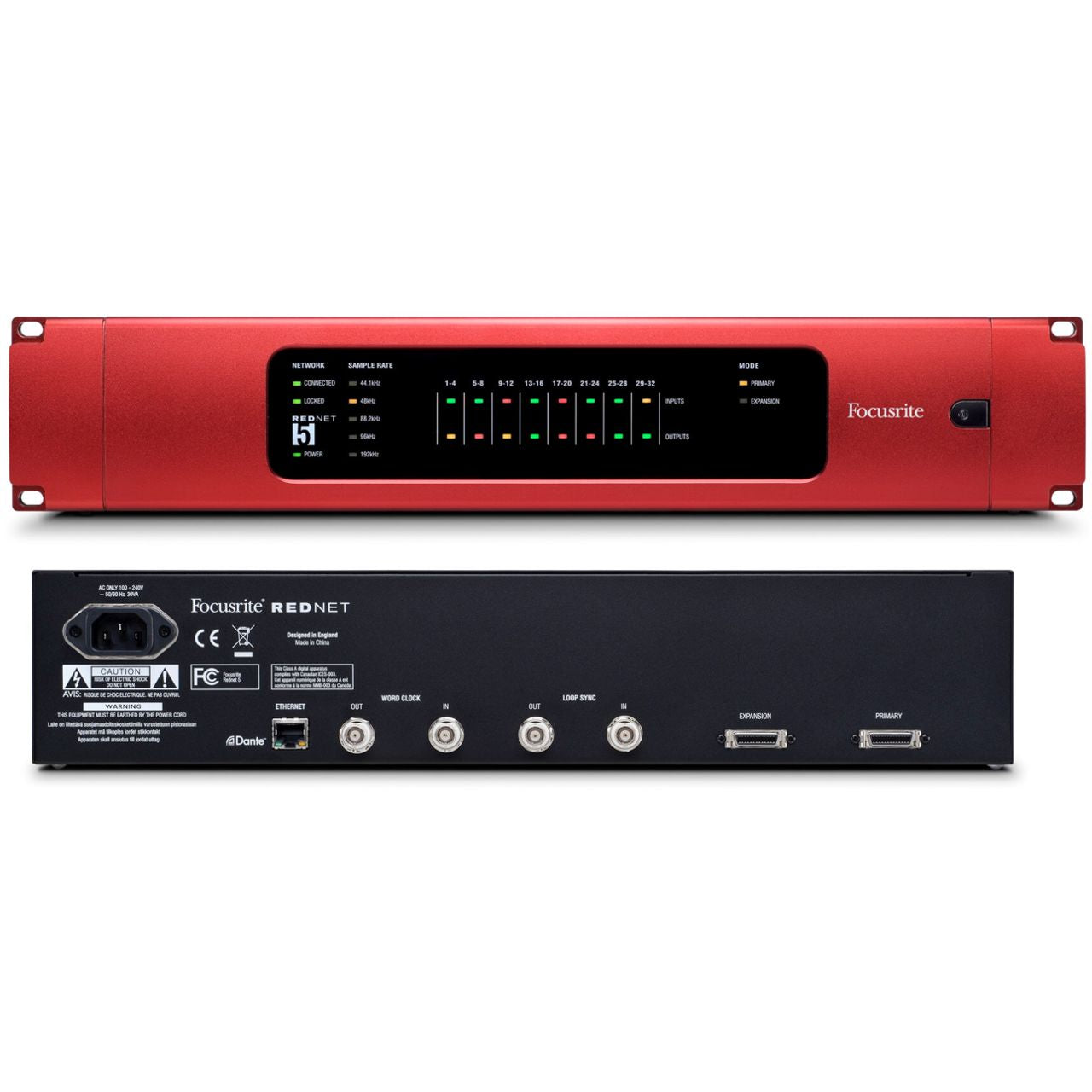

RedNet 5 from Focusrite is a multi-channel bridge interface that provides bi-directional communication between a Pro Tools HD system and a Dante network. The RedNet system was designed for use in multiple audio applications. The system is scalable and delivers near zero latency audio distribution, with the ability to expand I/O channel count, interface digital components, and/or bridge between Pro Tools HD and MADI and a Dante audio network.
A single RedNet 5 unit acts as a 64 channel (32 inputs plus 32 outputs) digital break-in/break-out box between a Pro Tools system and a RedNet network. Connectivity between RedNet 5 and Pro Tools is via Pro Tool's standard DigiLink connectors; an adaptor cable is included to allow compatibility with Pro Tools|HD systems that use the Mini DigiLink connectors.
Up to six units can be connected to a single Pro Tools HDX system, supporting up to 192 channels at 96 kHz or 96 channels at 192 kHz. Pro Tools HD Native and Pro Tools HD (TDM) are also supported and the RedNet 5 is interoperable with other Pro Tools interfaces with no RedNet PCIe card required.
Key features
- Route 64 Channels I/O
- Scalable System
- Utilizes Standard DigiLink Connectors
- Connect up to 6 Units
- Maintains Existing Pro Tools Workflow
- RedNet Control Software
- Internal Universal Power Supply
Specifications
| Digital Performance | Supported Sample Rates: 44.1, 48, 88.2, 96 and 192 kHz Clock Sources: Local, wordclock, loop sync External Wordclock Range: Sample rate +/-7.5% |

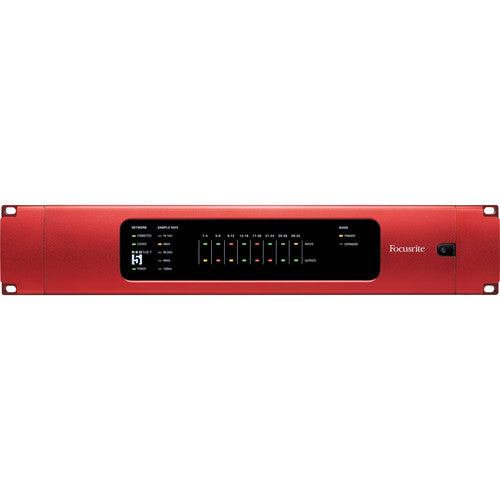

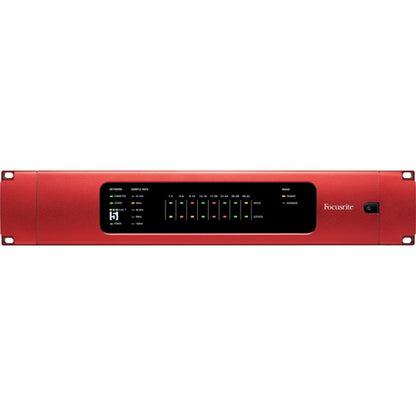

| Front Panel Indicators | Power: 1 x Green Network Connected: 1 x Green Sync Lock: 1 x Green Sample Rate: 5 x Yellow Mode: 2 x Yellow Signal Present: 16 x Tri-color (green = signal present; amber = -6 dBFS; red = 0 dBFS) |
| Power Requirements | 90~260V AC, 50/60 Hz Power Consumption: 45 W |
| Dimensions (WxDxH) | 19 x 9.7 x 3.5" (483 x 247 x 89 mm) |
| Weight | 10.2 lb (4.6 kg) |
| Package Weight | 14.8 lb |
| Box Dimensions (LxWxH) | 16.7 x 9.7 x 0.24" |
In the Box
- Focusrite RedNet D16R MkII Rackmount 16x16 Dante Digital Audio Interface
- 2 x IEC AC Mains Cables
- 2 x IEC Retaining Clips
- Brainworx bx_console Focusrite SC Plug-In (Download)
- Limited 3-Year Warranty
