Overview
The RedNet 1, 8-Channel Audio Interface with Brooklyn II Upgrade Card Retrofit from Focusrite is an eight-channel, remote controlled input/output analog audio interface that uses the digital audio networking system to bring studio quality sound to any modern audio application. The unit features 24-bit AD/DA conversion for professional audio performance, with 119 dB of dynamic range at sample rates up to 192 kHz. Rock-stable JetPLL clocking and premium multi-layered board circuitry further facilitate the delivery of uncompromised audio.
The Dante Brooklyn II card retrofit includes the Dante API toolkit and SDKs (software development kits) for integration into Windows and Mac software, the latest Dante Controller software, up to 4 Dante Virtual Soundcard licenses for installation on Windows or Mac, and OEM Portal Access.
The RedNet system was designed for use in multiple audio applications, from live sound rigs to multi-room recording studios, houses of worship, audio distribution installations, post production environments and anything in-between. The system is scalable and delivers near zero latency audio distribution, with the ability to expand I/O channel count, interface digital components, and/or bridge between Pro Tools | HD or MADI and a Dante audio network.
There are three methods of connecting the RedNet 1 to a computer using a single Ethernet cable. These are via an optional RedNet PCIe card (for ASIO and Core Audio applications), directly into the computer's Ethernet port using DVS (Dante Virtual Soundcard) software where near zero latency is not essential, or through an existing RedNet 5 interface for connecting directly to Pro Tools HD, Pro Tools HDX and Pro Tools HD Native.
Key features
- 8 Channels Analog I/O
- Dante Brooklyn II Card Retrofit
- Single Ethernet Cable Connection
- Route Signals to Multiple Destinations
- 24-bit AD/DA Conversion
- Up to 192 kHz Sample Rates
- RedNet Control Software
- Internal Universal Power Supply
Specifications
| Form Factor | Rackmount |
| Display | None |
| Channels of I/O | 8 Input / 8 Output |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Number of Mic Preamps | None |

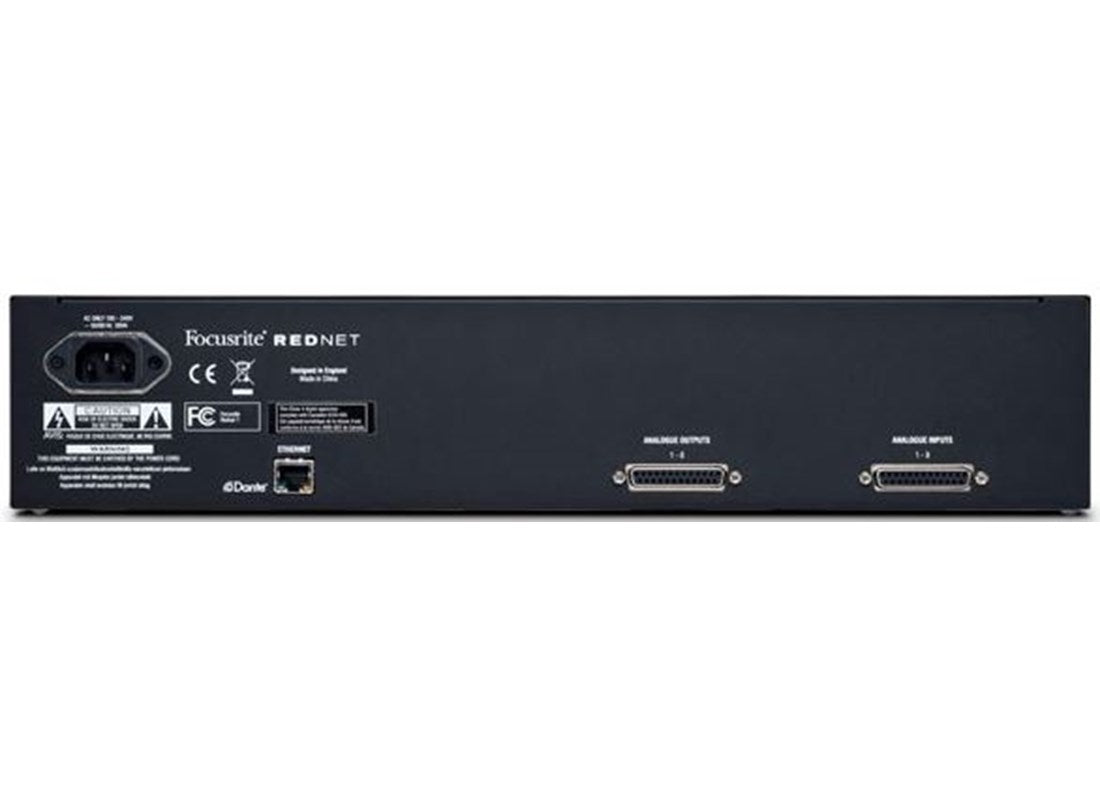

| Analog Audio I/O | 1 x DB-25 25-Pin Input (AES 59/Tascam Pinout) 1 x DB-25 25-Pin Line/8-Channel Output (AES 59/Tascam Pinout) |
| Digital Audio I/O | None |
| MIDI I/O | None |
| Frequency Response | DB-25 Inputs: 20 Hz to 20 kHz ±0.05 dB Outputs: 20 Hz to 20 kHz ±0.15 dB |
| Dynamic Range | Inputs: 119 dBA (-60 dBFS) DB-25 Outputs: 119 dBA (-60 dBFS) AD/DA Converters: 120 dB |
| SNR | Inputs: 119 dBA |
| THD+N | DB-25 Inputs: < 0.001% (20 Hz to 20 kHz, at -1 dBFS) Outputs: < 0.001% (20 Hz to 20 kHz, at -1 dBFS) |
| Crosstalk | Inputs: < -90 dB (0 dBFS) Outputs: < -100 dB (0 dBFS) |
| dBFS Reference Level | +18 / +24 dBu = 0 dBFS (Selectable) |
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 192 kHz |
| Sync Sources | Ethernet, Internal |
| OS Compatibility | macOS Windows |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Rackmount Size | 2 RU |
| Dimensions | 19 x 9.7 x 3.5" / 483 x 247 x 89 mm |
| Weight | 9.0 lb / 4.1 kg |
In the Box
- Focusrite RedNet 1, 8-Channel Audio Interface with Brooklyn 2 Upgrade Card Retrofit
- Dante Brooklyn II Module
- AC Power Cable
- 6.6' (2 m) Cat6 Ethernet Cable
- Limited 3-Year Warranty
