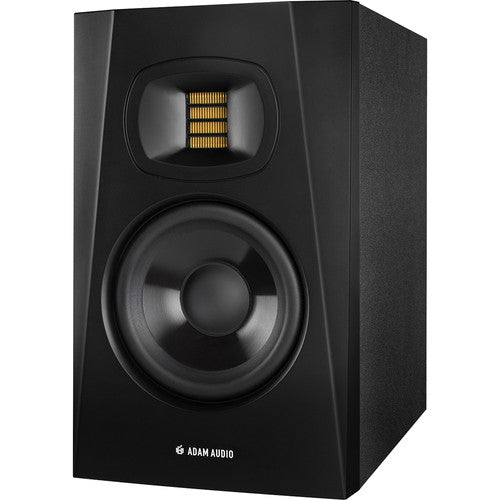

ADAM Audio T5V
ADAM Audio T5V
Overview
The single, Adam Professional Audio T-Series T5V is an affordable, high-quality, near-field, active studio monitor well suited for project studios, commercial recording facilities, and broadcast environments. The speaker features Adam's U-Art 1.9" accelerated ribbon tweeter with HPS waveguide and a 5" polypropylene woofer with a rear-firing bass-reflex port. The unit is bi-amped with 50W allocated to the woofer, while 20W powers the tweeter, which combine to provide a frequency response of 45 Hz to 25 kHz and a maximum SPL of 106 dB. The rear panel offers XLR and RCA connections with controls for input sensitivity, gain, high-shelf (-2, 0, +2 dB), and low-shelf (-2, 0, +2 dB). The Adam Professional Audio T5V ships with a power cord.
Key features
- 5" Polypropylene Woofer
- U-ART 1.9" Accelerated Ribbon Tweeter
- HPS Waveguide from the S-Series
- Bi-Amped Class-D Amplifier
- Total Output: 70W
- High & Low Shelf Filters
- Frequency Response: 45 Hz to 25 kHz
- Maximum SPL: 106 dB
- Includes Power Cord
- Limited 5-Year Warranty
Specifications
| Woofer | Number: 1 Basket Ø: 5.0" / 127.0 mm Cone Material: Polypropylene |
| Tweeter | Number: 1 Type: U-ART Diaphragm Area: 4.0" / 101.6 mm Equiv. Diaphragm Ø: 1.9" / 48.3 mm Velocity Transform Ratio: 4:1 Diaphragm Weight: 0.006 oz / 0.17 g Waveguide: HPS |
| Amplifier | Number: 2 Woofer: 1 Type: PWM (Class-D) Amplifier Power RMS: 50 W Tweeter: 1 Type: PWM (Class-D) Amplifier Power RMS: 20 W |
| Control Options | Input Sensitivity: Switchable +4 dBu / -10 dBV Gain: Yes High-Shelf: -2, 0, +2 dB Low-Shelf: -2, 0, +2 dB |
| Input Connectors | Analog: XLR, RCA Input Impedance: 10 kOhm / 20 kOhm |
| Frequency Response | 45 Hz to 25 kHz |
| THD | THD > 80 Hz: 0.5 % |
| Maximum SPL | Maximum SPL: ≥106 dB (per pair at 3.3 / 1.0 m) |
| Crossover | 3 kHz |
| Power | AC Mains Inputs Voltage: 100 to 240 VAC 50/60 Hz |
| Maximum Power Consumption | 132 W |
| Dimensions (H x W x D) | 11.7 x 7.0 x 11.7" / 297.2 x 177.8 x 297.2 mm |
| Weight | 12.6 lb / 5.7 kg |
| Package Weight | 14.8 lb |
| Box Dimensions (LxWxH) | 15.4 x 14.7 x 9.9" |
In the Box
- Adam Professional Audio T5V T-Series Active Nearfield Monitor (Single)
- Power Cord
- Limited 2-Year Warranty, Extended to 5-Years with Registration
